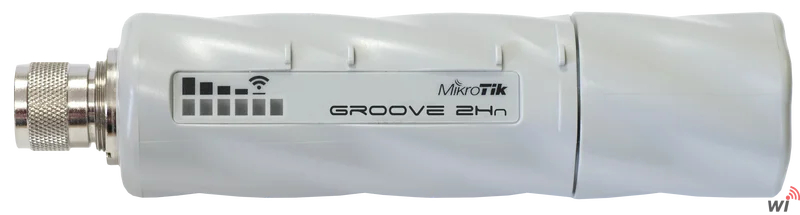

Groove 2Hn

Bu ürün artık temin edilememektedir. yerine :  RBGrooveA-52HPn ürününü alabilirsiniz.

The Groove is our smallest outdoor series model - a fully featured RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built-in 630mW 802.11b/g/n wireless radio. With the Nv2 TDMA technology, 125Mbit aggregate throughput is possible, limited only by the ethernet port!

The Groove 2Hn has a RouterOS Level3 license, so you can use it as a wireless client or for point to point links.
It has a built-in N-male connector, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align. The Groove runs RouterOS with all it’s features.

Product specifications

Details
Product code	RBGroove2Hn
TX power	28dBm
CPU	AR7241
Max Power consumption	5W
Current Monitor	No
CPU speed	400MHz
RAM	32MB
Architecture	MIPS-BE
LAN ports	1
Gigabit	No
MiniPCI	0
Integrated Wireless	Yes
Wireless standards	802.11b/g/n
PoE	8-30V DC on Ether1
Voltage Monitor	Yes
PCB temperature monitor	Yes
CPU temperature monitor	No
Dimensions	177x44x44mm
Operating System	RouterOS
Temperature range	-30C...+70C
RouterOS License	L3

Throughput results

RB Metal/Groove Series @400Mhz (Single chain throughput test)			64 byte frames		512 byte frames		1518 byte frames
IP Firewall	Conntrack	Mode	Mbps	Fps	Mbps	Fps	Mbps	Fps
off	off	Bridging	21.35	41700	110.59	27000	115.37	9500
on	off	Routing	20.63	40300	110.18	26900	115.37	9500
on	off	Bridging	16.23	31700	106.5	26000	115.37	9500
on	on	Routing	15.21	29700	99.53	24300	115.37	9500
on	on	Bridging	12.75	24900	81.1	19800	115.37	9500

RB Metal/Groove/SXT/SEXTANT Series @400Mhz (Ethernet only test)			64 byte frames		512 byte frames		1518 byte frames
IP Firewall	Conntrack	Mode	Mbps	Fps	Mbps	Fps	Mbps	Fps
off	off	Bridging	49.66	97000	99.53	24300	99.58	8200
on	off	Routing	34	66400	99.53	24300	99.58	8200
on	off	Bridging	30.77	60100	99.53	24300	99.58	8200
on	on	Routing	25.6	50000	99.53	24300	99.58	8200
on	on	Bridging	18.02	35200	99.53	24300	99.58	8200

1. Notes:
2. All throughput tests done with Xena Networks specialized test system and RouterOS v5, according RFC2544, with Ethernet frame sizes 64, 512, 1518 bytes.
   Each board is tested with specified number of Ethernet interfaces, to ensure optimal load on hardware.
3. Values in Italics indicate that the maximum possible throughput was reached, limited only by ethernet ports themselves.
